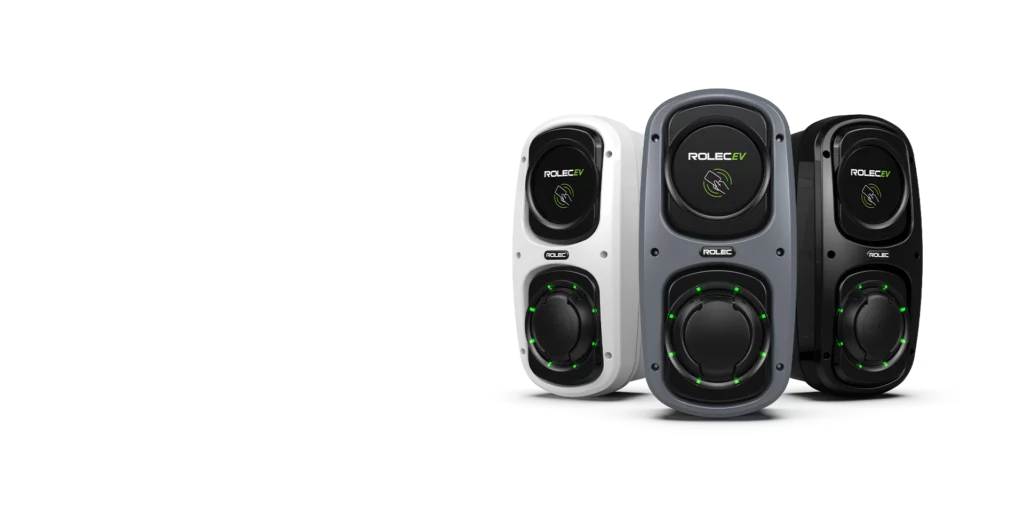

WALLPOD

Intelligent EV charging unit

ROLEC WALLPOD 7KW EV CHARGER – The WALLPOD is an affordable and reliable EV charging unit, which is ideal for both domestic and commercial locations, providing up to 7.4kW fast charging.

This future-proof OCPP compliant unit can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system.

ROLEC WALLPOD 7KW EV CHARGER – FUTURE-PROOF & FEATURE RICH

• Suitable for both domestic and commercial installations
• Plug & charge, mobile app or RFID controlled charging
• Universal charging socket or Type 2 tethered lead
• Up to 7.4kW charging output
• TruePEN PME fault detection (no earth rod required)
• Dynamic load balancing (CT clamp & cable included)
• Solar PV, battery storage or wind turbine integration*
• Alexa & Google assistant compatible*
• OCPP 1.6 compliant (Can integrate with any back-office)
• Over-the-air firmware / software updates
• Built-in over current & 6mA DC leakage protection
• Cable lock feature (can be permanently locked by user)
• Integrated RFID reader
• MID-approved energy metering
• 4G / Wi-Fi / Ethernet connectivity
• IK10 impact resistant design
• Wall or post mounted
• OZEV grant fundable
• Designed & manufactured in the UK

KEY FEATURES

OCPP 1.6 COMPLIANT

BRANDING & COLOUR OPTIONS AVAILABLE

GRANT FUNDABLE

OPTIONAL RFID
CARD / FOB OPERATION

4G / WI-FI / ETHERNET CONNECTIVITY

IP RATED & UV STABILISED

SPECIFICATIONS

MATERIALS

High impact resistant Polycarbonate

DIMENSIONS

179mm (W)
367mm (H)
142mm (D)

CHARGE PROTOCOL

Mode 3

INPUT VOLTAGE

230V AC (±10 %)
50/60Hz (Single Phase)

PROTECTION

Over current protection | DC fault protection – 6mA | Lightning surge, over temperature protection | PME fault detection | Load balancing

10 YEARS IN THE MAKING & A POPULAR INTELLIGENT EV CHARGER FOR BOTH DOMESTIC & WORKPLACE REQUIREMENTS

OPTIONS & ACCESSORIES

External protection packages

RFID card/fobs

Corporate branding (colours, logo badge, etc.)

EV charging cables (Type 1 to Type 2 or Type 2 to Type 2)

Load Manager system (electrical distribution management)

Optional mounting stake/post

100A up to 35mm² Screened CT Clamp with 10m Cable
